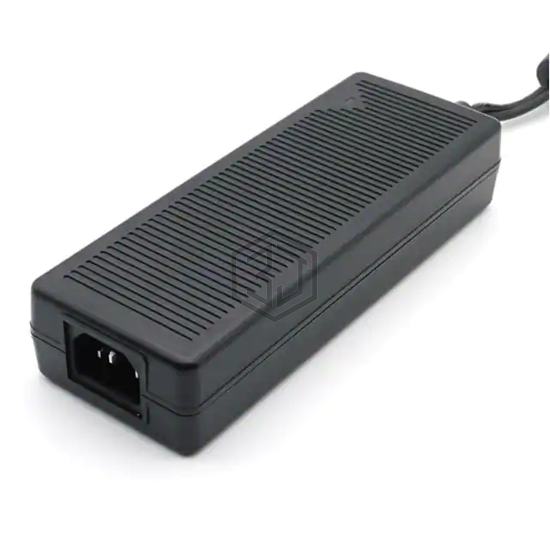

AC/DC DESKTOP ADAPTER 12V 90W
6A-901DB12-028 is a AC DC Desktop, Wall Adapters manufactured by ENG ELECTRIC CO., LTD. AC/DC DESKTOP ADAPTER 12V 90W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 7.5A, size / dimension 6.57" L x 2.44" W x 1.34" H (167.0mm x 62.0mm x 34.0mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 12V |
| Current - Output (Max) | 7.5A |
| Power (Watts) | 90 W |
| No Load Power Consumption | 210mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 60.2" (1.53m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 6.57" L x 2.44" W x 1.34" H (167.0mm x 62.0mm x 34.0mm) |
| Approval Agency | AS/NZS, CB, CSA, FCC, IEC, PSE, UKCA, UL |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for 6A-901DB12-028 and get a quote within 24 hours.
