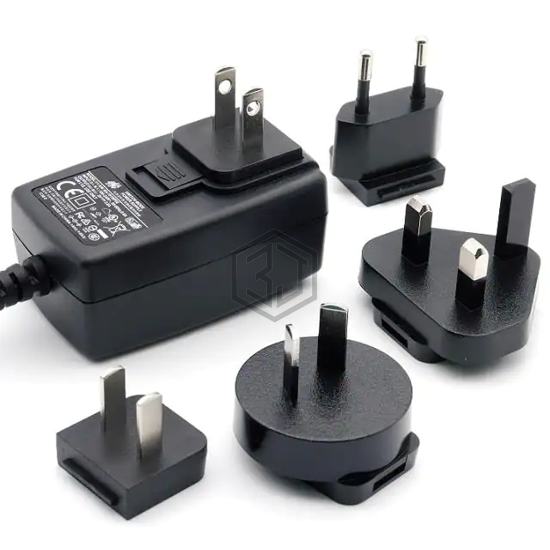

AC/DC WALL MOUNT ADAPTER 24V 24W
6A-242WP24-030 is a AC DC Desktop, Wall Adapters manufactured by ENG ELECTRIC CO., LTD. AC/DC WALL MOUNT ADAPTER 24V 24W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 2A, size / dimension 2.90" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm).
In Stock: 60
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Included) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 2A |
| Power (Watts) | 24 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 60.2" (1.53m) |
| Input Connector | Multi-Blade |
| Features | - |
| Size / Dimension | 2.90" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) |
| Approval Agency | AS/NZS, BSMI, CB, CCC, CSA, FCC, IEC, RCM, UKCA, UL |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for 6A-242WP24-030 and get a quote within 24 hours.
