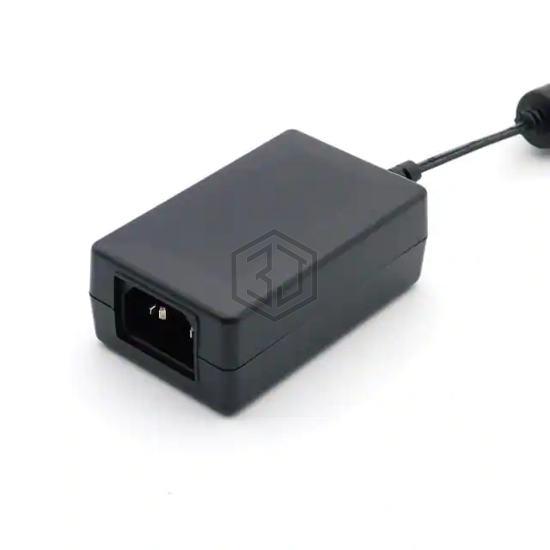

AC/DC DESKTOP ADAPTER 5V 20W
6A-201DB05-066 is a AC DC Desktop, Wall Adapters manufactured by ENG ELECTRIC CO., LTD. AC/DC DESKTOP ADAPTER 5V 20W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 4A, size / dimension 3.15" L x 1.97" W x 1.22" H (80.0mm x 50.0mm x 31.0mm).
In Stock: 80
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 5V |
| Current - Output (Max) | 4A |
| Power (Watts) | 20 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 47.2" (1.20m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 3.15" L x 1.97" W x 1.22" H (80.0mm x 50.0mm x 31.0mm) |
| Approval Agency | AS/NZS, CB, CCC, CSA, FCC, IEC, PSE, RCM, UKCA, UL |
| Standard Number | 60950-1; 62368-1 |
