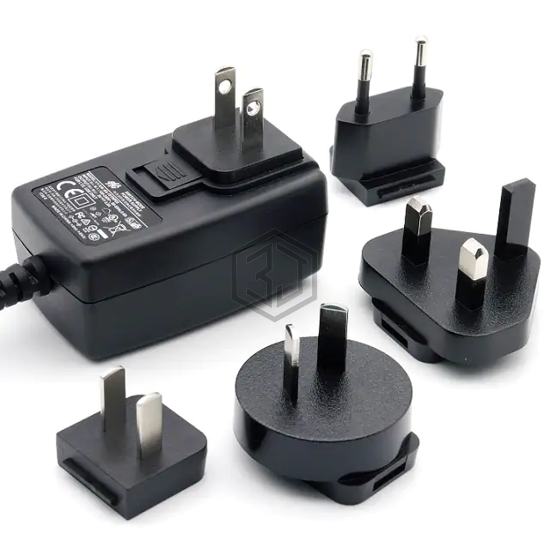

AC/DC WALL MOUNT ADAPTER 5V
6A-181WP05-127 is a AC DC Desktop, Wall Adapters manufactured by ENG ELECTRIC CO., LTD. AC/DC WALL MOUNT ADAPTER 5V. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 3A, size / dimension 2.90" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm).
In Stock: 117
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Included) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 5V |
| Current - Output (Max) | 3A |
| Power (Watts) | - |
| No Load Power Consumption | 100mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 39.4" (1.00m) |
| Input Connector | Multi-Blade |
| Features | - |
| Size / Dimension | 2.90" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) |
| Approval Agency | AS/NZS, BIS, BSMI, CB, CCC, CSA, FCC, IEC, KC, PSE, RCM, UKCA, UL |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for 6A-181WP05-127 and get a quote within 24 hours.
