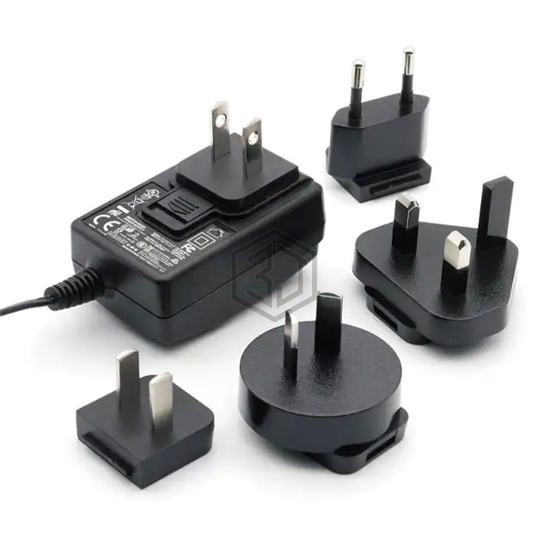

AC/DC WALL MOUNT ADAPTER 12V 12W
6A-121WP12-060 is a AC DC Desktop, Wall Adapters manufactured by ENG ELECTRIC CO., LTD. AC/DC WALL MOUNT ADAPTER 12V 12W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 1A, size / dimension 2.44" L x 1.59" W x 1.22" H (62.0mm x 40.5mm x 31.0mm).
In Stock: 105
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Included) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 12V |
| Current - Output (Max) | 1A |
| Power (Watts) | 12 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm |
| Cord Length | 60.2" (1.53m) |
| Input Connector | Multi-Blade |
| Features | - |
| Size / Dimension | 2.44" L x 1.59" W x 1.22" H (62.0mm x 40.5mm x 31.0mm) |
| Approval Agency | AS/NZS, BSMI, CB, CCC, CSA, FCC, IEC, PSE, RCM, UKCA, UL |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for 6A-121WP12-060 and get a quote within 24 hours.
