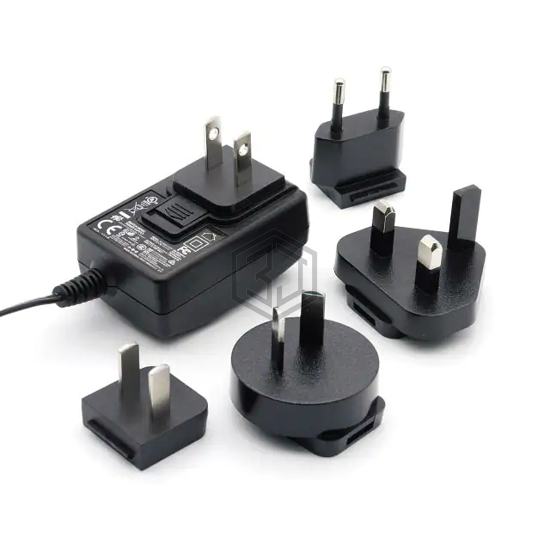

AC/DC DSKTP/WALL MT ADAPT 9V 6W
6A-061WP09-002 is a AC DC Desktop, Wall Adapters manufactured by ENG ELECTRIC CO., LTD. AC/DC DSKTP/WALL MT ADAPT 9V 6W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 670mA, size / dimension 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm).
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop, Wall Mount (Class II) |
| Input Type | Fixed Blade, Multi-Blade (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 9V |
| Current - Output (Max) | 670mA |
| Power (Watts) | 6 W |
| No Load Power Consumption | - |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | - |
| Input Connector | Multi-Blade (Included) |
| Features | - |
| Size / Dimension | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) |
| Approval Agency | CB, CCC, CE, PSE, TUV, UL |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for 6A-061WP09-002 and get a quote within 24 hours.
