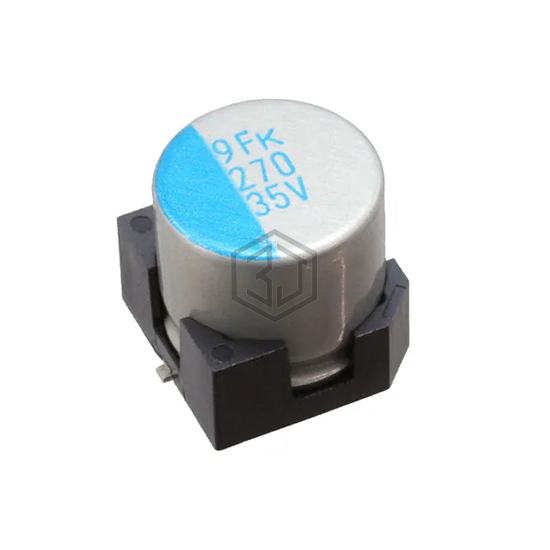

CAP ALUM POLY HYB 270UF 35V SMD
HTK-35V271MH10E-R2 is a Aluminum - Polymer Capacitors manufactured by Elna America. CAP ALUM POLY HYB 270UF 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,541
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 6000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.409" L x 0.409" W (10.40mm x 10.40mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HHXA350ARA271MJA0G | United Chemi-Con | CAP ALUM POLY HYB 270UF 35V SMD | 100% | View |
| HHXC350GRA271MJA0G | Chemi-Con | CAP ALUMHYB 270UF 20% 35V SMD | 94% | View |
| EEH-ZC1V271P | Panasonic Electronic Components | CAP ALUM POLY HYB 270UF 35V SMD | 90% | View |
| EEH-ZK1E271P | Panasonic Electronic Components | CAP ALUM POLY 270UF 20% 25V SMD | 80% | View |
| GYA1E271MCW1GS | Nichicon | CAP ALUMHYB 270UF 20% 25V SMD | 80% | View |
| EEH-ZT1V271P | Panasonic Electronic Components | CAP ALUM POLY HYB 270UF 35V SMD | 63% | View |
Submit your RFQ for HTK-35V271MH10E-R2 and get a quote within 24 hours.
