.015UF/10%/1500VDC

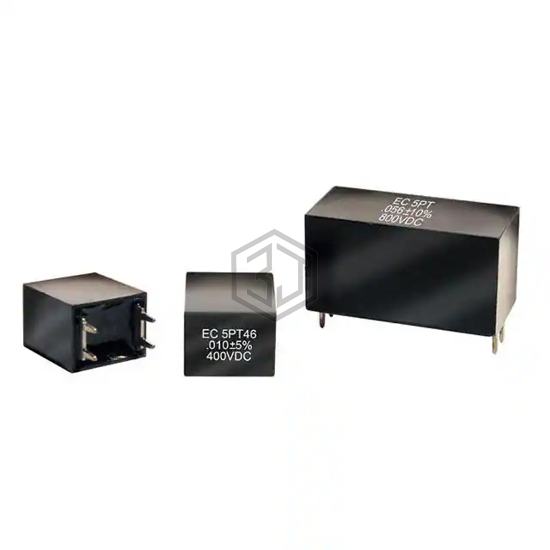

5PT46M153K is a Film Capacitors manufactured by Electronic Concepts Inc.. .015UF/10%/1500VDC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 1500V (1.5kV), package / case Radial - 4 Leads.
In Stock: 1,138
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.015 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 460V |
| Voltage Rating - DC | 1500V (1.5kV) |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 11 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 1.250" L x 0.500" W (31.75mm x 12.70mm) |
| Height - Seated (Max) | 0.730" (18.54mm) |
| Termination | PC Pins |
| Lead Spacing | 0.200" (5.08mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R75RI2150DQ30J | KEMET | CAP FILM 0.015UF 5% 1.25KVDC RAD | 94% | View |
| PHE850EB5150MB15R17 | KEMET | CAP FLM 0.015UF 20% 1.25KVDC RAD | 92% | View |
| BFC233924153 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 20% 630VDC RAD | 83% | View |
| BFC233822153 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 20% 630VDC RAD | 83% | View |
| BFC2370GL153 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 10% 630VDC RAD | 78% | View |
| BFC236856153 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 5% 400VDC RAD | 72% | View |
