SWITCHING REGULATOR

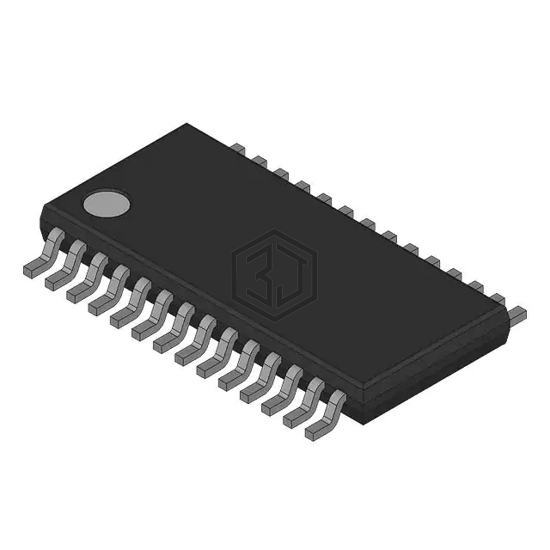

EL7566DRE is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Elantec. SWITCHING REGULATOR. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 85°C (TA), package / case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - output 6A.
In Stock: 1,449
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 6V |
| Current - Output | 6A |
| Frequency - Switching | 300kHz ~ 440kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-HTSSOP |
EL7566DRE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RT8055BGQW | Richtek USA Inc. | IC REG BUCK ADJUSTABLE 3A 10WDFN | 84% | View |
| LTC3614EUDD#PBF | Analog Devices Inc. | IC REG BUCK ADJUSTABLE 4A 24QFN | 79% | View |
| MPQ8612GR-16-P | Monolithic Power Systems Inc. | IC REG BUCK ADJUSTABLE 16A 17QFN | 62% | View |
| MAX8686ETL+T | Analog Devices Inc./Maxim Integrated | IC REG BUCK ADJ 25A 40TQFN | 59% | View |
| AP1538SG-13 | Diodes Incorporated | IC REG BUCK ADJUSTABLE 3A 8SOP | 58% | View |
| LT3686AIMSE#TRPBF | Analog Devices Inc. | IC REG BUCK ADJ 1.2A 12MSOP | 54% | View |
Submit your RFQ for EL7566DRE and get a quote within 24 hours.
