SWITCHING REGULATOR

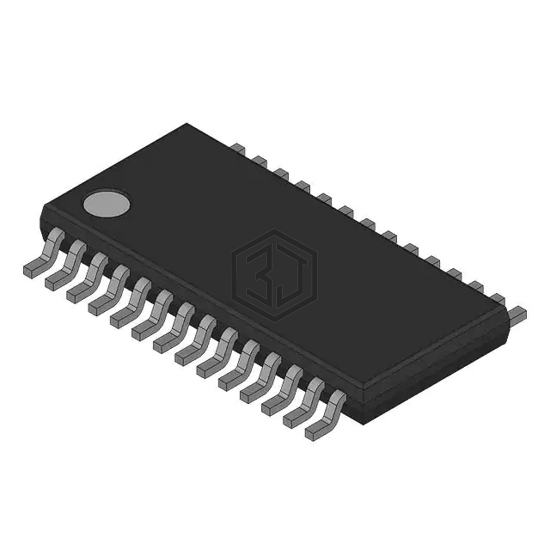

EL7566AIREZ is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Elantec. SWITCHING REGULATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - output 6A.
In Stock: 1,975
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 6V |
| Current - Output | 6A |
| Frequency - Switching | 200kHz ~ 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-HTSSOP |
EL7566AIREZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SC172MLTRT | Semtech Corporation | IC REG BUCK ADJUSTABLE 2A 10MLPD | 82% | View |
| LT8609EMSE#TRPBF | Analog Devices Inc. | IC REG BUCK ADJUSTABLE 2A 10MSOP | 61% | View |
| NB6381DL-LF-Z | Monolithic Power Systems Inc. | IC REG BUCK ADJUSTABLE 8A 20QFN | 57% | View |
| TPS53515RVER | Texas Instruments | IC REG BUCK ADJ 12A 28VQFN | 54% | View |
| TPS54622RHLR | Texas Instruments | IC REG BUCK ADJUSTABLE 6A 14VQFN | 54% | View |
| LT8608SIV#TRMPBF | Analog Devices Inc. | IC REG BUCK ADJ 1.5A 12LQFN | 53% | View |
Submit your RFQ for EL7566AIREZ and get a quote within 24 hours.
