BUFFER/INVERTER BASED MOSFET DRI

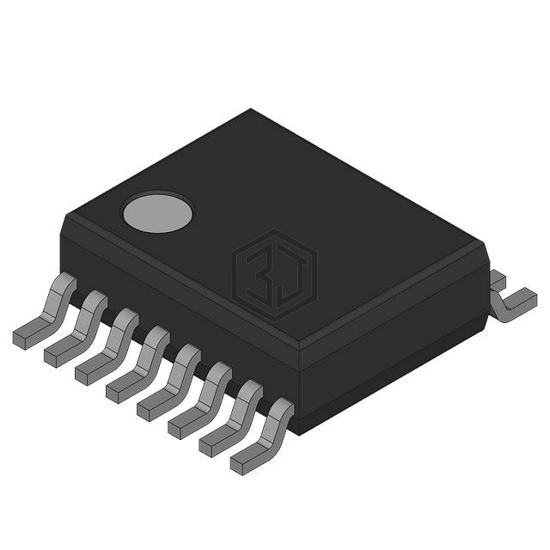

EL7457CU-T13 is a PMIC - Gate Drivers manufactured by Elantec. BUFFER/INVERTER BASED MOSFET DRI. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 18V, package / case 16-SSOP (0.154", 3.90mm Width).
In Stock: 2,736
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Independent |
| Number of Drivers | 4 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 13.5ns, 13ns |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IXDF602SITR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 84% | View |
| IXDF602SI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 84% | View |
| ISL89412IBZ | Renesas Electronics America Inc | IC GATE DRVR LOW-SIDE 8SOIC | 84% | View |
| IR2114SSPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 24SSOP | 73% | View |
| 1EDN7116GXTMA1 | Infineon Technologies | IC GATE DRIVER HI/LO SIDE 10VSON | 65% | View |
| SIP41111DY-T1-E3 | Vishay Siliconix | IC GATE DRVR HALF-BRIDGE 8SOIC | 62% | View |
