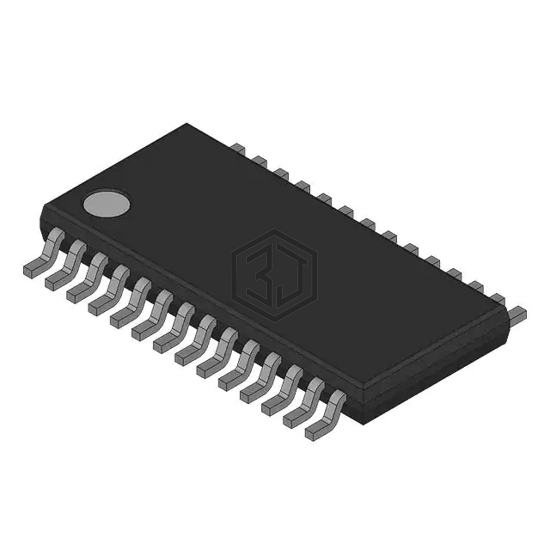

EL5824IREZ - Elantec - Linear - Amplifiers - Video Amps and Modules

EL5824IREZ

Elantec

BUFFER AMPLIFIER

EL5824IREZ is a Linear - Amplifiers - Video Amps and Modules manufactured by Elantec. BUFFER AMPLIFIER. Key specifications: mounting type Surface Mount, package / case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - supply 9.5 mA, output type Rail-to-Rail.

In Stock: 7,905

Product Attributes

AttributeValue
Product StatusObsolete
ApplicationsTFT-LCD Panels: Gamma Buffer, VCOM Driver
Output TypeRail-to-Rail
Number of Circuits10
-3db Bandwidth12 MHz
Slew Rate15V/µs
Current - Supply9.5 mA
Current - Output / Channel140 mA
Voltage - Supply, Single/Dual (±)4.5V ~ 16.5V, ±2.25V ~ 8.25V
Mounting TypeSurface Mount
Package / Case28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package28-HTSSOP

Frequently Asked Questions

EL5824IREZ is a Linear - Amplifiers - Video Amps and Modules manufactured by Elantec. BUFFER AMPLIFIER

The mounting type of EL5824IREZ is Surface Mount.

The package type of EL5824IREZ is 28-TSSOP (0.173", 4.40mm Width) Exposed Pad.

The current rating of EL5824IREZ is 9.5 mA.

The circuit configuration of EL5824IREZ is 10.

Alternative Products

EL5824IREZ is Obsolete. Consider these compatible alternatives:

Part NumberManufacturerDescriptionMatch
EL5824IRE-T13 Renesas Electronics America Inc IC AMP TFT-LCD 28TSSOP 100% View
EL5824IRE Renesas Electronics America Inc IC AMP TFT-LCD 28TSSOP 100% View
EL5724IREZ-T7 Renesas Electronics America Inc IC AMP TFT-LCD 24HTSSOP 97% View
EL5624IREZ-T7 Renesas Electronics America Inc IC AMP TFT-LCD 20HTSSOP 92% View
EL5624IREZ-T13 Renesas Electronics America Inc IC AMP TFT-LCD 20HTSSOP 92% View
EL5524IRE-T7 Renesas Electronics America Inc IC AMP TFT-LCD 14HTSSOP 87% View
