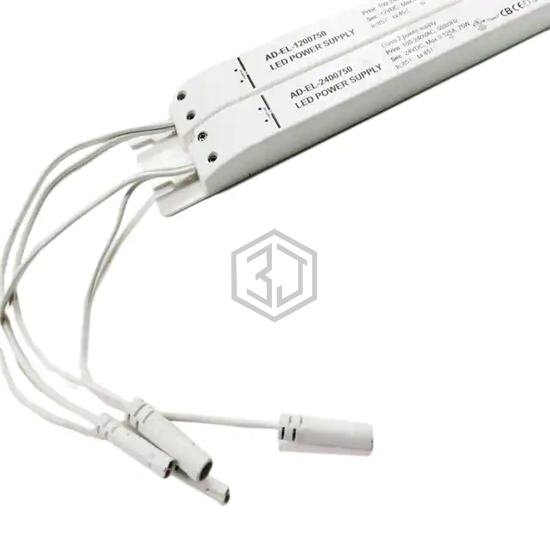

24 VDC 75W LED DRIVER
AD-EL-2400750-B is a LED Drivers manufactured by Edgelight LLC. 24 VDC 75W LED DRIVER. Key specifications: operating temperature -20°C ~ 50°C, voltage - output 24V, current - output (max) 3.125A, size / dimension 13.27" L x 1.18" W x 0.79" H (337.0mm x 30.0mm x 20.0mm).
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 100VAC |
| Voltage - Input (Max) | 240VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 3.125A |
| Power (Watts) | 75 W |
| Voltage - Isolation | 3 kV |
| Dimming | Analog, PWM |
| Features | OCP, SCP |
| Ratings | IP20 |
| Operating Temperature | -20°C ~ 50°C |
| Efficiency | 92% |
| Termination Style | Wire Leads |
| Size / Dimension | 13.27" L x 1.18" W x 0.79" H (337.0mm x 30.0mm x 20.0mm) |
| Approval Agency | CB, CCC, CE, cULus, KC, PSE, TUV |
| Standard Number | UL 8750 |
Submit your RFQ for AD-EL-2400750-B and get a quote within 24 hours.
