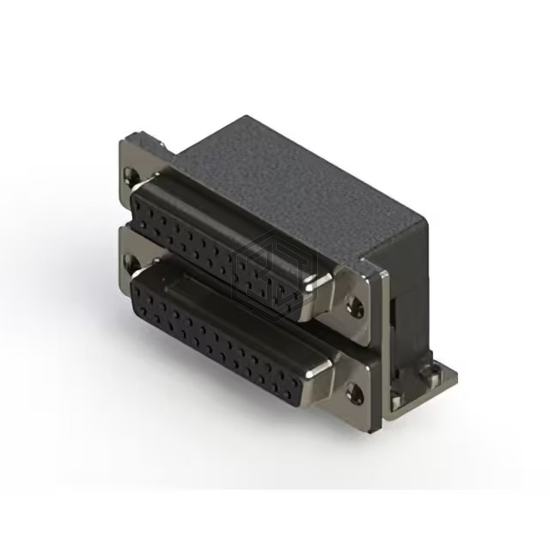

CONN D-SUB RCPT 25POS R/A SLDR
662-025-364-051 is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB RCPT 25POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 3A per Contact, termination Solder, number of positions 25, 25.
In Stock: 9,800
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub - Stacked |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 25, 25 |
| Number of Rows | 2, 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B); 3 (DB, B) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (M3) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A per Contact |
| Backset Spacing | 0.318" (8.08mm) |
| Features | Mounting Brackets, Shielded |
