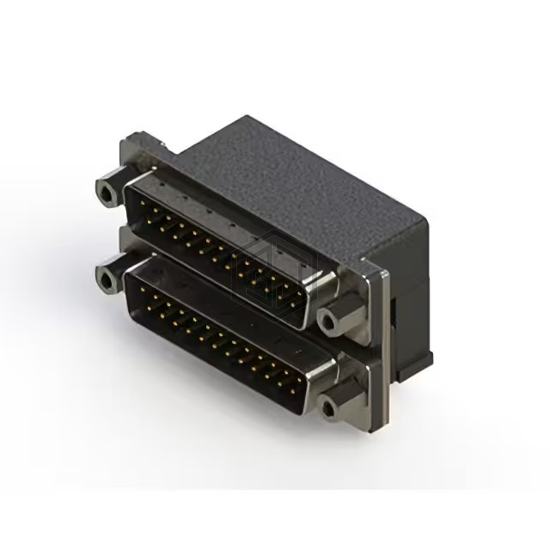

661 SERIES RIGHT ANGLE DUAL D-SU
661-025-664-003 is a D-Sub Connectors manufactured by EDAC Inc.. 661 SERIES RIGHT ANGLE DUAL D-SU. Key specifications: mounting type Panel Mount, Through Hole, Right Angle, current rating (amps) 3A per Contact, termination Solder, number of positions 25, 25.
In Stock: 4,886
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins |
| Number of Positions | 25, 25 |
| Number of Rows | 2, 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B); 3 (DB, B) |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A per Contact |
| Backset Spacing | 0.318" (8.08mm) |
| Features | Grounding Indents, Mounting Brackets, Shielded |
Submit your RFQ for 661-025-664-003 and get a quote within 24 hours.
