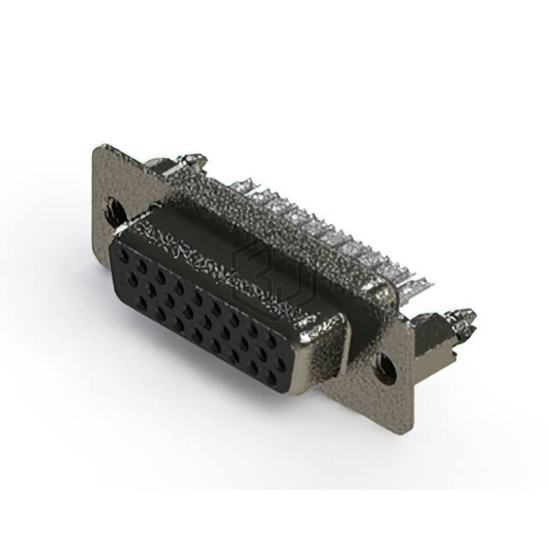

CONN D-SUB HD RCPT 26P SLDR CUP
638-026-332-066 is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB HD RCPT 26P SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), current rating (amps) 3A per Contact, termination Solder Cup, number of positions 26.
In Stock: 8,395
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Mounting Type | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 2 (DA, A) High Density |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A per Contact |
| Backset Spacing | - |
| Features | Board Lock, Shielded |
