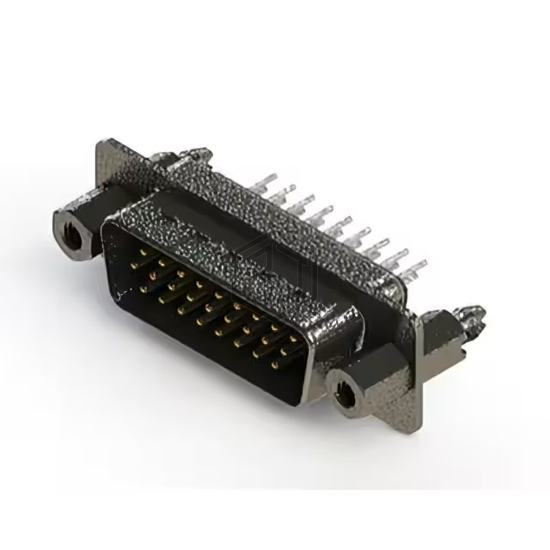

CONN D-SUB HD PLUG 26P PNL MNT
637-026-630-267 is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB HD PLUG 26P PNL MNT. Key specifications: mounting type Panel Mount, Through Hole, current rating (amps) 3A per Contact, termination Solder, number of positions 26.
In Stock: 7,960
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Plug, Male Pins |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Mounting Type | Panel Mount, Through Hole |
| Shell Size, Connector Layout | 2 (DA, A) High Density |
| Contact Type | Signal |
| Flange Feature | Mating Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A per Contact |
| Backset Spacing | - |
| Features | Board Lock, Grounding Indents, Shielded |
Submit your RFQ for 637-026-630-267 and get a quote within 24 hours.
