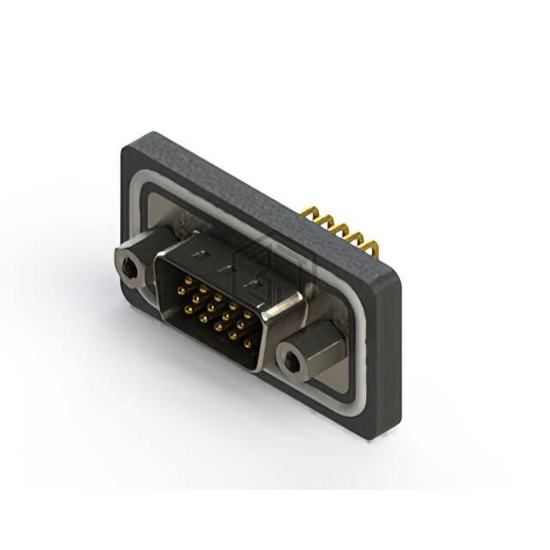

CONN D-SUB HD PLUG 15P R/A SLDR
633-W15-262-012 is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB HD PLUG 15P R/A SLDR. Key specifications: mounting type Panel Mount, Through Hole, Right Angle, current rating (amps) 3A per Contact, termination Solder, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 65
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Plug, Male Pins |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A per Contact |
| Backset Spacing | 0.232" (5.89mm) |
| Features | - |
