CONN D-SUB RCPT 5POS R/A SLDR

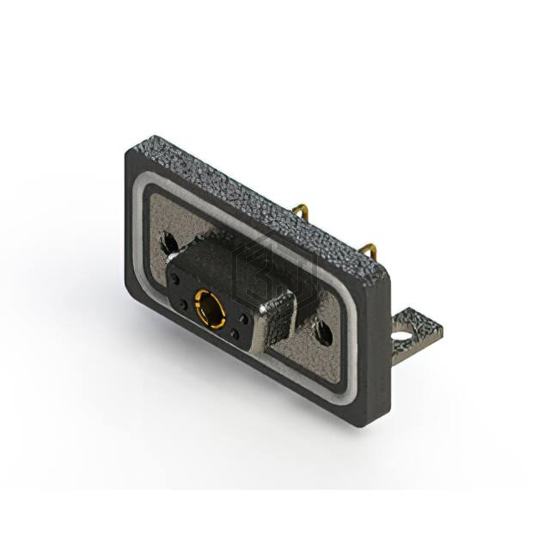

630W5W1-340-2NC is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB RCPT 5POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 5A, 20A, termination Solder, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 8,723
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 5 (4 + 1 Power) |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E) - 5W1 |
| Contact Type | Signal and Power |
| Flange Feature | Housing/Shell (M3) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 20A |
| Backset Spacing | - |
| Features | Mounting Brackets, Shielded |
Submit your RFQ for 630W5W1-340-2NC and get a quote within 24 hours.
