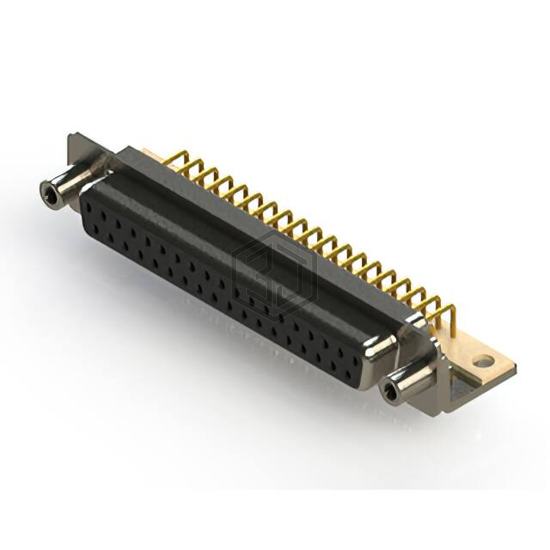

630M SERIES RIGHT ANGLE D-SUB
630-M37-640-BT6 is a D-Sub Connectors manufactured by EDAC Inc.. 630M SERIES RIGHT ANGLE D-SUB. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 5A, termination Solder, number of positions 37.
In Stock: 6,651
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 4 (DC, C) |
| Contact Type | Signal |
| Flange Feature | Mating Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A |
| Backset Spacing | 0.370" (9.40mm) |
| Features | Mounting Brackets, Shielded |
