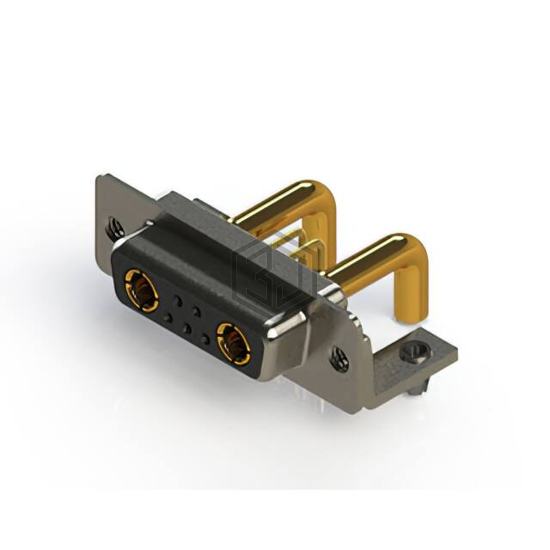

CONN D-SUB RCPT 7POS R/A SLDR
630-7W2-650-4T3 is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB RCPT 7POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 5A, 40A, termination Solder, number of positions 7 (5 + 2 Power).
In Stock: 5,794
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 7 (5 + 2 Power) |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
| Contact Type | Signal and Power |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 40A |
| Backset Spacing | 0.370" (9.40mm) |
| Features | Board Lock, Mounting Brackets |
