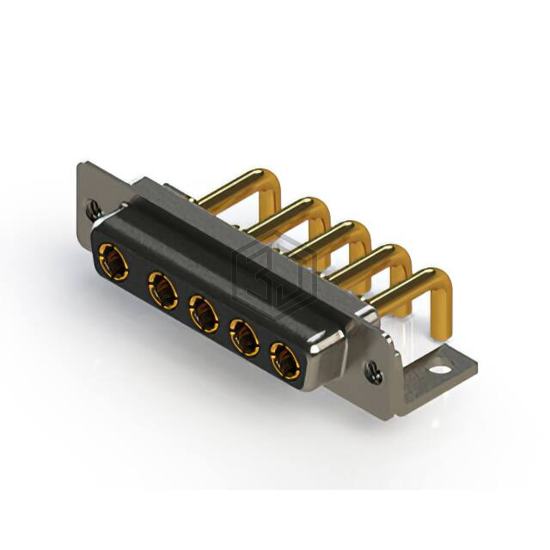

CONN D-SUB RCPT 5POS R/A SLDR
630-5W5-650-2TC is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB RCPT 5POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 20A, termination Solder, number of positions 5 (Power).
In Stock: 2,028
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 5 (Power) |
| Number of Rows | 1 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B) - 5W5 |
| Contact Type | Power |
| Flange Feature | Housing/Shell (M3) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 20A |
| Backset Spacing | 0.520" (13.20mm) |
| Features | Mounting Brackets |
Submit your RFQ for 630-5W5-650-2TC and get a quote within 24 hours.
