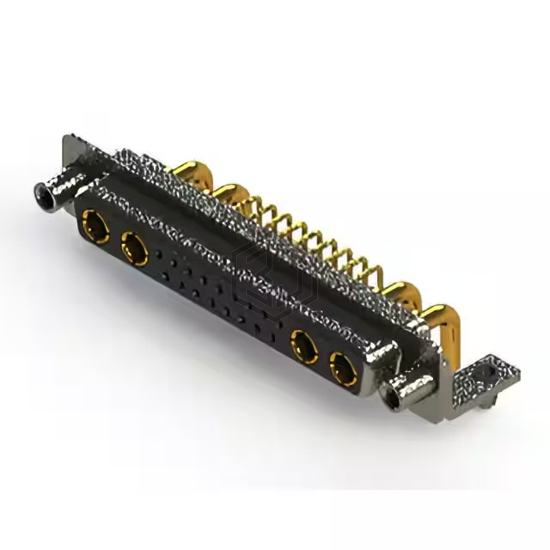

CONN D-SUB RCPT 21POS R/A SLDR
630-21W4640-2ND is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB RCPT 21POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 5A, 20A, termination Solder, number of positions 21 (17 + 4 Power).
In Stock: 4,591
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 21 (17 + 4 Power) |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 4 (DC, C) - 21WA4 |
| Contact Type | Signal and Power |
| Flange Feature | Mating Side (M3) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 20A |
| Backset Spacing | 0.370" (9.40mm) |
| Features | Board Lock, Mounting Brackets |
Submit your RFQ for 630-21W4640-2ND and get a quote within 24 hours.
