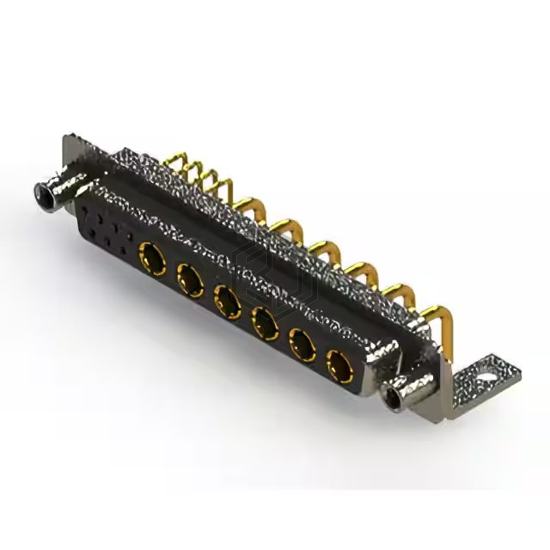

CONN D-SUB RCPT 13POS R/A SLDR
630-13W6640-1N6 is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB RCPT 13POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 5A, 10A, termination Solder, number of positions 13 (7 + 6 Power).
In Stock: 7,110
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 13 (7 + 6 Power) |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 4 (DC, C) - 13W6 |
| Contact Type | Signal and Power |
| Flange Feature | Mating Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 10A |
| Backset Spacing | 0.370" (9.40mm) |
| Features | Board Lock |
Submit your RFQ for 630-13W6640-1N6 and get a quote within 24 hours.
