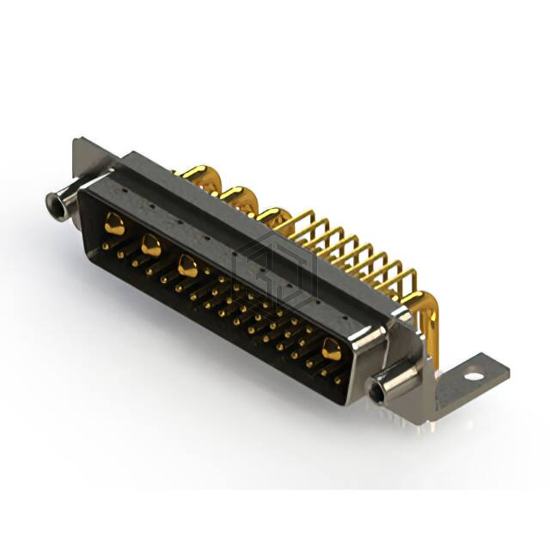

CONN D-SUB PLUG 36POS R/A SLDR
629-36W4640-2TE is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB PLUG 36POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 5A, 20A, termination Solder, number of positions 36 (32 + 4 Power).
In Stock: 8,714
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Number of Positions | 36 (32 + 4 Power) |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 5 (DD, D) - 36W4 |
| Contact Type | Signal and Power |
| Flange Feature | Mating Side (M3) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 20A |
| Backset Spacing | 0.370" (9.40mm) |
| Features | Grounding Indents, Mounting Brackets |
