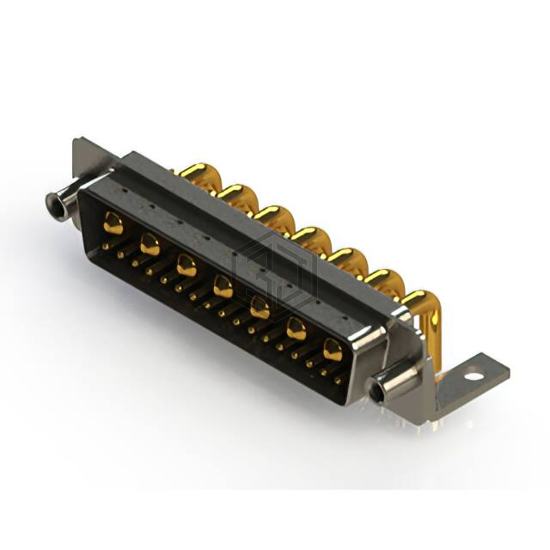

CONN D-SUB PLUG 24POS R/A SLDR
629-24W7640-3NE is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB PLUG 24POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 5A, 30A, termination Solder, number of positions 24 (17 + 7 Power).
In Stock: 1,970
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Number of Positions | 24 (17 + 7 Power) |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 5 (DD, D) - 24W7 |
| Contact Type | Signal and Power |
| Flange Feature | Mating Side (M3) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 30A |
| Backset Spacing | 0.370" (9.40mm) |
| Features | Grounding Indents, Mounting Brackets |
Submit your RFQ for 629-24W7640-3NE and get a quote within 24 hours.
