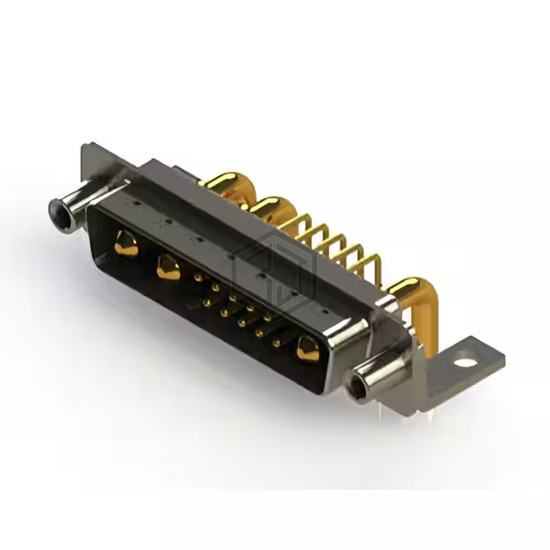

CONN D-SUB PLUG 13POS R/A SLDR
629-13W3240-3T6 is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB PLUG 13POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 5A, 30A, termination Solder, number of positions 13 (10 + 3 Power).
In Stock: 7,426
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Number of Positions | 13 (10 + 3 Power) |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B) - 13C3, 13W3 |
| Contact Type | Signal and Power |
| Flange Feature | Mating Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 30A |
| Backset Spacing | 0.370" (9.40mm) |
| Features | Board Lock, Grounding Indents |
Submit your RFQ for 629-13W3240-3T6 and get a quote within 24 hours.
