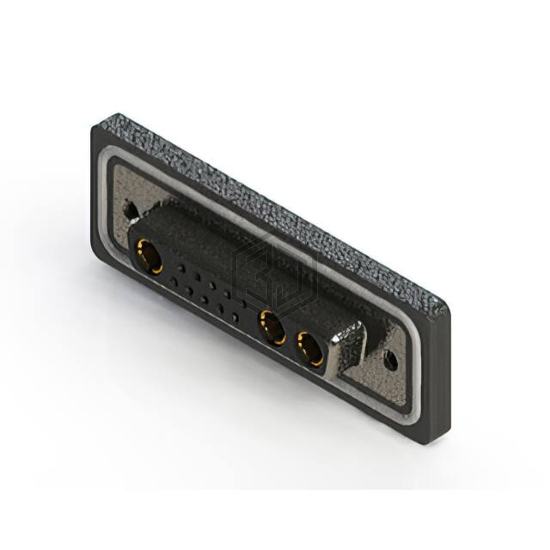

CONN D-SUB RCPT 13P PNL MNT SLDR
628W13W3324-3N2 is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB RCPT 13P PNL MNT SLDR. Key specifications: mounting type Panel Mount, Through Hole, current rating (amps) 5A, 30A, termination Solder, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 9,102
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 13 (10 + 3 Power) |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole |
| Shell Size, Connector Layout | 3 (DB, B) - 13C3, 13W3 |
| Contact Type | Signal and Power |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 30A |
| Backset Spacing | - |
| Features | Shielded |
Submit your RFQ for 628W13W3324-3N2 and get a quote within 24 hours.
