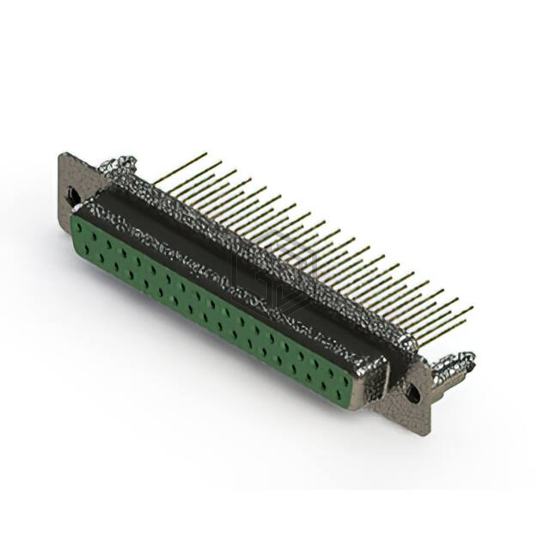

CONN D-SUB RCPT 37POS VERT SLDR
628-M37-623-GN5 is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB RCPT 37POS VERT SLDR. Key specifications: mounting type Through Hole, current rating (amps) 5A per Contact, termination Solder, number of positions 37.
In Stock: 9,020
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Mounting Type | Through Hole |
| Shell Size, Connector Layout | 4 (DC, C) |
| Contact Type | Signal and Power |
| Flange Feature | Board Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A per Contact |
| Backset Spacing | - |
| Features | Board Lock, Shielded |
Submit your RFQ for 628-M37-623-GN5 and get a quote within 24 hours.
