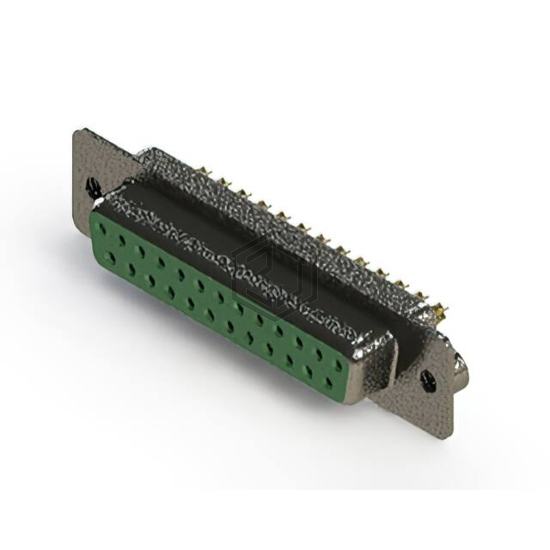

628M SERIES VERTICAL D-SUB RECEP
628-M25-222-GN2 is a D-Sub Connectors manufactured by EDAC Inc.. 628M SERIES VERTICAL D-SUB RECEP. Key specifications: mounting type Free Hanging (In-Line), current rating (amps) 5A per Contact, termination Solder Cup, number of positions 25.
In Stock: 6,799
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 3 (DB, B) |
| Contact Type | Signal and Power |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A per Contact |
| Backset Spacing | - |
| Features | Shielded |
