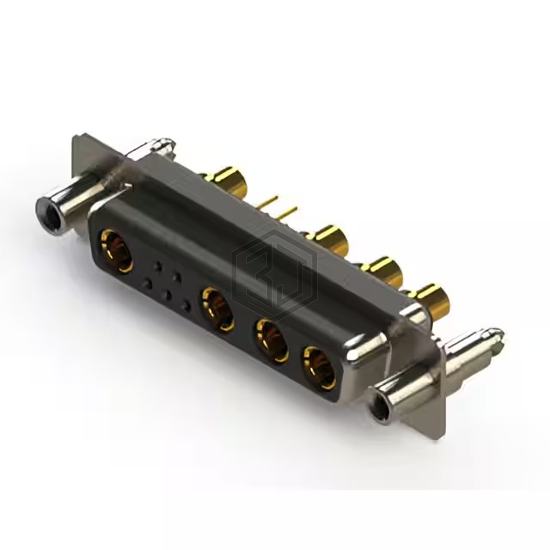

CONN D-SUB RCPT 9POS VERT SLDR
628-9W4-624-4TE is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB RCPT 9POS VERT SLDR. Key specifications: mounting type Through Hole, current rating (amps) 5A, 40A, termination Solder, number of positions 9 (5 + 4 Power).
In Stock: 2,566
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 9 (5 + 4 Power) |
| Number of Rows | 2 |
| Mounting Type | Through Hole |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 |
| Contact Type | Signal and Power |
| Flange Feature | Mating Side (M3) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 40A |
| Backset Spacing | - |
| Features | Board Lock, Shielded |
Submit your RFQ for 628-9W4-624-4TE and get a quote within 24 hours.
