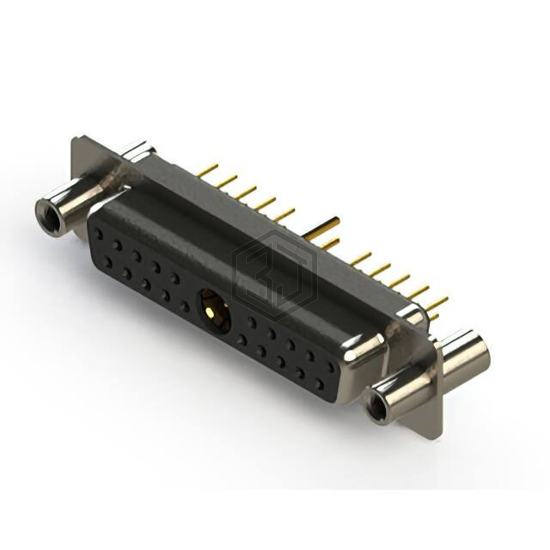

CONN D-SUB RCPT 21POS VERT SLDR
628-21W1624-5TC is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB RCPT 21POS VERT SLDR. Key specifications: mounting type Through Hole, termination Solder, number of positions 21 (20 + 1 Coax), connector type Receptacle, Female Sockets.
In Stock: 1,952
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 21 (20 + 1 Coax) |
| Number of Rows | 2 |
| Mounting Type | Through Hole |
| Shell Size, Connector Layout | 3 (DB, B) - 21W1 |
| Contact Type | Coax and Signal |
| Flange Feature | Board Side (M3); Mating Side (M3) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | - |
| Backset Spacing | - |
| Features | Shielded |
Submit your RFQ for 628-21W1624-5TC and get a quote within 24 hours.
