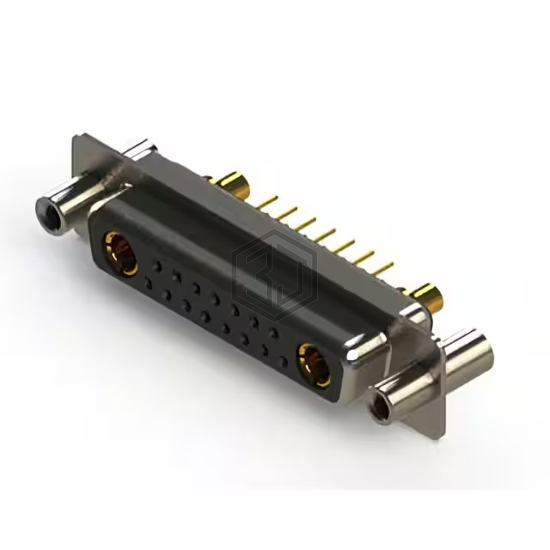

CONN D-SUB RCPT 17POS VERT SLDR
628-17W2224-3TC is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB RCPT 17POS VERT SLDR. Key specifications: mounting type Through Hole, current rating (amps) 5A, 30A, termination Solder, number of positions 17 (15 + 2 Power).
In Stock: 1,455
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 17 (15 + 2 Power) |
| Number of Rows | 2 |
| Mounting Type | Through Hole |
| Shell Size, Connector Layout | 3 (DB, B) - 17W2 |
| Contact Type | Signal and Power |
| Flange Feature | Board Side (M3); Mating Side (M3) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 30A |
| Backset Spacing | - |
| Features | Shielded |
Submit your RFQ for 628-17W2224-3TC and get a quote within 24 hours.
