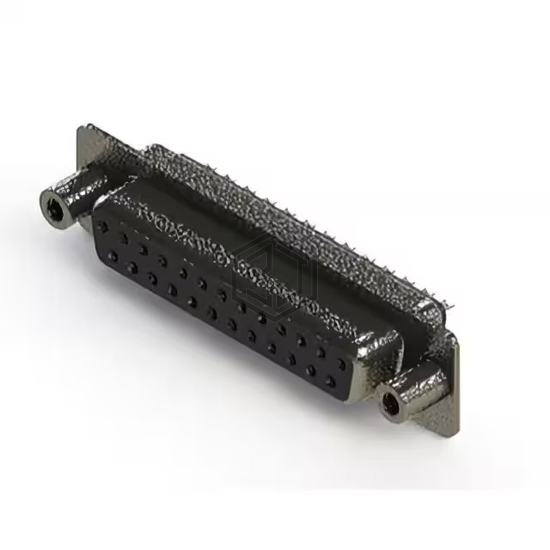

CONN D-SUB RCPT 25POS SLDR CUP
628-025-322-268 is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB RCPT 25POS SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), current rating (amps) 3A per Contact, termination Solder Cup, number of positions 25.
In Stock: 1,372
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 3 (DB, B) |
| Contact Type | Signal |
| Flange Feature | Board Side (4-40) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A per Contact |
| Backset Spacing | - |
| Features | Shielded |
Submit your RFQ for 628-025-322-268 and get a quote within 24 hours.
