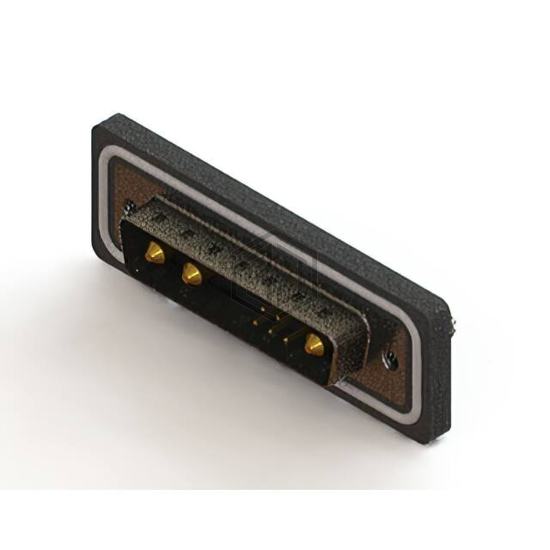

CONN D-SUB PLUG 9P PNL MNT SLDR
627W9W4-324-1N5 is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB PLUG 9P PNL MNT SLDR. Key specifications: mounting type Panel Mount, Through Hole, current rating (amps) 5A, 10A, termination Solder, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 6,862
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Number of Positions | 9 (5 + 4 Power) |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 |
| Contact Type | Signal and Power |
| Flange Feature | Board Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 10A |
| Backset Spacing | - |
| Features | Board Lock, Grounding Indents, Shielded |
Submit your RFQ for 627W9W4-324-1N5 and get a quote within 24 hours.
