CONN D-SUB PLUG 13P PNL MNT

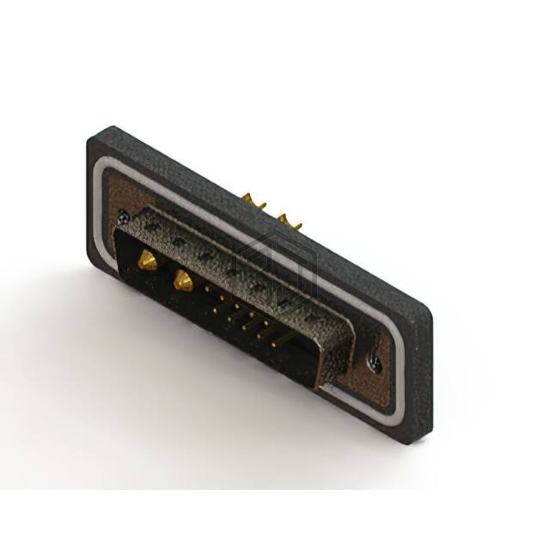

627W13W3322-2N2 is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB PLUG 13P PNL MNT. Key specifications: mounting type Panel Mount, Through Hole, current rating (amps) 5A, 20A, termination Solder Cup, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 3,264
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Number of Positions | 13 (10 + 3 Power) |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole |
| Shell Size, Connector Layout | 3 (DB, B) - 13C3, 13W3 |
| Contact Type | Signal and Power |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 20A |
| Backset Spacing | - |
| Features | Grounding Indents, Shielded |
Submit your RFQ for 627W13W3322-2N2 and get a quote within 24 hours.
