CONN D-SUB PLUG 9P PNL MNT SLDR

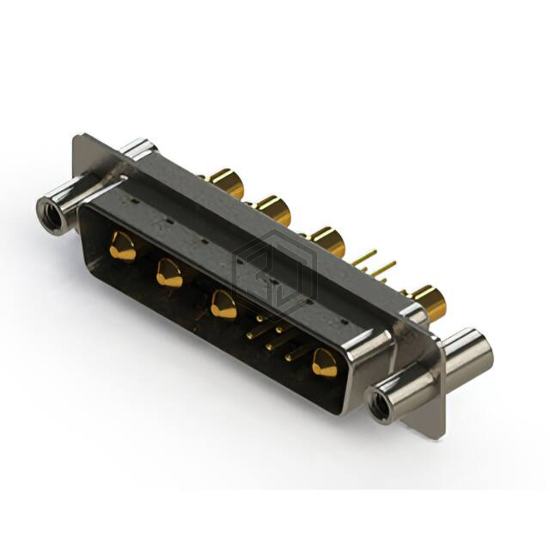

627-9W4-224-4T4 is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB PLUG 9P PNL MNT SLDR. Key specifications: mounting type Panel Mount, Through Hole, current rating (amps) 5A, 40A, termination Solder, number of positions 9 (5 + 4 Power).
In Stock: 9,875
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Number of Positions | 9 (5 + 4 Power) |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 |
| Contact Type | Signal and Power |
| Flange Feature | Board Side (4-40); Mating Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 40A |
| Backset Spacing | - |
| Features | Grounding Indents, Shielded |
Submit your RFQ for 627-9W4-224-4T4 and get a quote within 24 hours.
