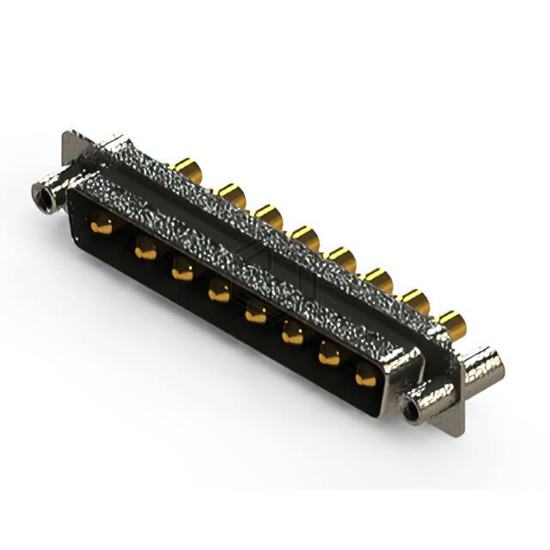

CONN D-SUB PLUG 8P PNL MNT SLDR
627-8W8-624-4N4 is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB PLUG 8P PNL MNT SLDR. Key specifications: mounting type Panel Mount, current rating (amps) 40A, termination Solder, number of positions 8 (Power).
In Stock: 5,349
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Number of Positions | 8 (Power) |
| Number of Rows | 1 |
| Mounting Type | Panel Mount |
| Shell Size, Connector Layout | 4 (DC, C) - 8W8 |
| Contact Type | Power |
| Flange Feature | Board Side (4-40); Mating Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 40A |
| Backset Spacing | - |
| Features | Grounding Indents, Shielded |
Submit your RFQ for 627-8W8-624-4N4 and get a quote within 24 hours.
