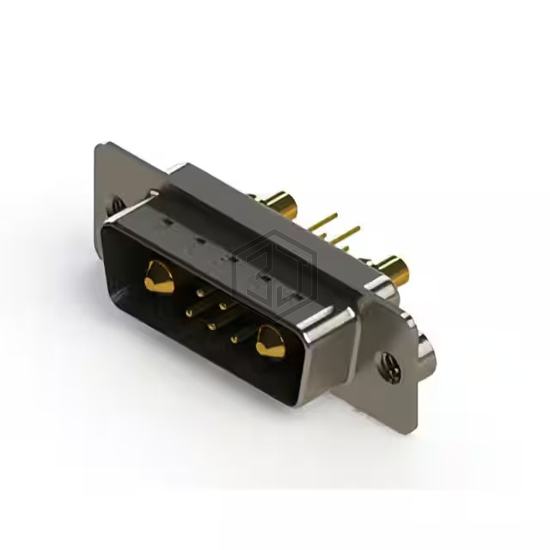

CONN D-SUB PLUG 7P PNL MNT SLDR
627-7W2-624-2TA is a D-Sub Connectors manufactured by EDAC Inc.. CONN D-SUB PLUG 7P PNL MNT SLDR. Key specifications: mounting type Panel Mount, Through Hole, current rating (amps) 5A, 20A, termination Solder, number of positions 7 (5 + 2 Power).
In Stock: 1,530
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Number of Positions | 7 (5 + 2 Power) |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
| Contact Type | Signal and Power |
| Flange Feature | Board Side (M3) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 20A |
| Backset Spacing | - |
| Features | Grounding Indents, Shielded |
