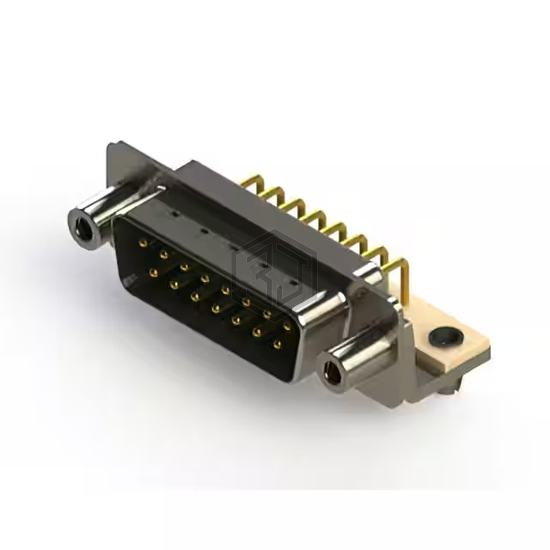

621M SERIES RIGHT ANGLE D-SUB PL
621-M15-660-GN5 is a D-Sub Connectors manufactured by EDAC Inc.. 621M SERIES RIGHT ANGLE D-SUB PL. Key specifications: mounting type Board Edge, Through Hole, Right Angle, current rating (amps) 5A, termination Solder, number of positions 15.
In Stock: 7,239
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) |
| Contact Type | Signal |
| Flange Feature | Mating Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A |
| Backset Spacing | 0.283" (7.20mm) |
| Features | Board Lock, Grounding Indents, Mounting Brackets, Shielded |
Submit your RFQ for 621-M15-660-GN5 and get a quote within 24 hours.
