CONN EDGE DUAL FMALE 56POS 0.156

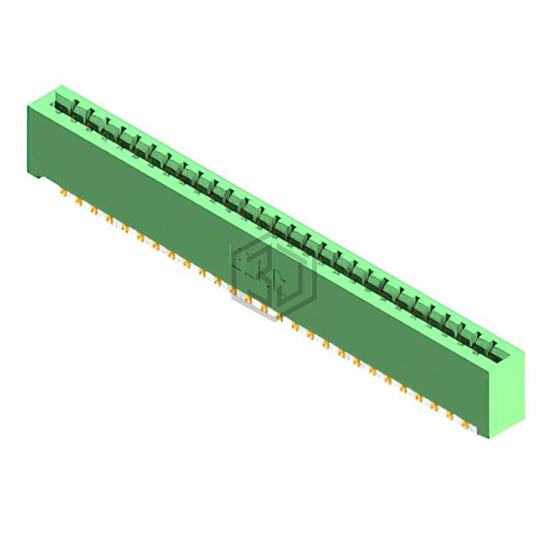

337-056-555-201 is a Card Edge Connectors - Edgeboard Connectors manufactured by EDAC Inc.. CONN EDGE DUAL FMALE 56POS 0.156. Key specifications: mounting type Board Edge, Straddle Mount, operating temperature -40°C ~ 105°C, color Green, contact material Copper Alloy.
In Stock: 7,098
| Attribute | Value |
|---|---|
| Product Status | Active |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 28 |
| Number of Positions | 56 |
| Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
| Number of Rows | 2 |
| Pitch | 0.156" (3.96mm) |
| Read Out | Dual |
| Features | Card Extender |
| Mounting Type | Board Edge, Straddle Mount |
| Termination | Solder Eyelet(s) |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Type | Cantilever |
| Color | Green |
| Flange Feature | - |
| Operating Temperature | -40°C ~ 105°C |
Submit your RFQ for 337-056-555-201 and get a quote within 24 hours.
