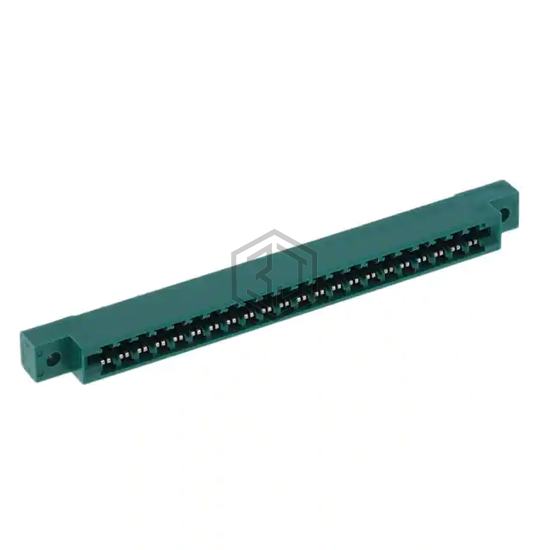

CONN EDGE SGL FMALE 22POS 0.156
307-022-525-102 is a Card Edge Connectors - Edgeboard Connectors manufactured by EDAC Inc.. CONN EDGE SGL FMALE 22POS 0.156. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, color Green, contact material Copper Alloy.
In Stock: 26
| Attribute | Value |
|---|---|
| Product Status | Active |
| Card Type | Non Specified - Single Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 22 |
| Number of Positions | 22 |
| Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
| Number of Rows | 1 |
| Pitch | 0.156" (3.96mm) |
| Read Out | Single |
| Features | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Type | Semi Bellows |
| Color | Green |
| Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia |
| Operating Temperature | -40°C ~ 105°C |
Submit your RFQ for 307-022-525-102 and get a quote within 24 hours.
