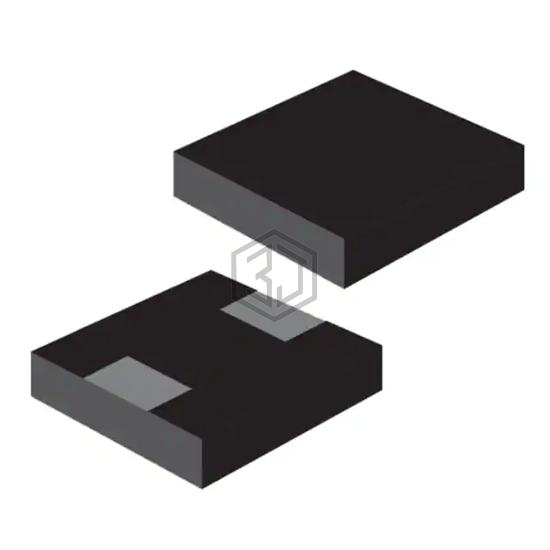

FIXED IND 3.3UH 9.5A 22 MOHM SMD
ECS-MPIL0630-3R3MC is a Fixed Inductors manufactured by ECS Inc.. FIXED IND 3.3UH 9.5A 22 MOHM SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 9.5 A, size / dimension 0.291" L x 0.260" W (7.40mm x 6.60mm).
In Stock: 1,464
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9.5 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 22mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.291" L x 0.260" W (7.40mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for ECS-MPIL0630-3R3MC and get a quote within 24 hours.
