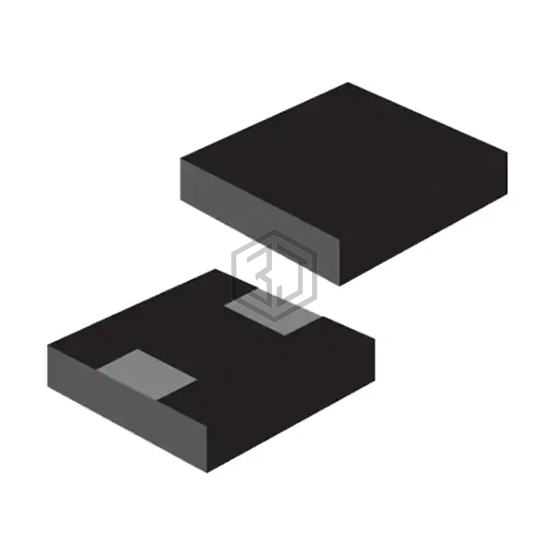

FIXED IND 3.3UH 7A 38 MOHM SMD
ECS-MPIL0530-3R3MC is a Fixed Inductors manufactured by ECS Inc.. FIXED IND 3.3UH 7A 38 MOHM SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 7 A, size / dimension 0.216" L x 0.204" W (5.49mm x 5.18mm).
In Stock: 1,994
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 38mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.216" L x 0.204" W (5.49mm x 5.18mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for ECS-MPIL0530-3R3MC and get a quote within 24 hours.
