FIXED IND 330NH 19.2A 3.52 MOHM

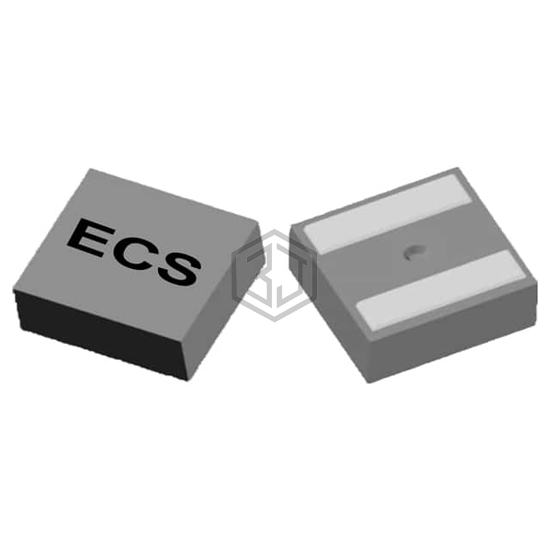

ECS-HCMPI-0503Q-R33M-T is a Fixed Inductors manufactured by ECS Inc.. FIXED IND 330NH 19.2A 3.52 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 19.2 A.
In Stock: 1,986
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 19.2 A |
| Current - Saturation (Isat) | 26A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.52mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 5030 |
| Size / Dimension | 0.217" L x 0.209" W (5.50mm x 5.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
Submit your RFQ for ECS-HCMPI-0503Q-R33M-T and get a quote within 24 hours.
