MONO XTAL 45MHZ 4P 3DB TH 2PC

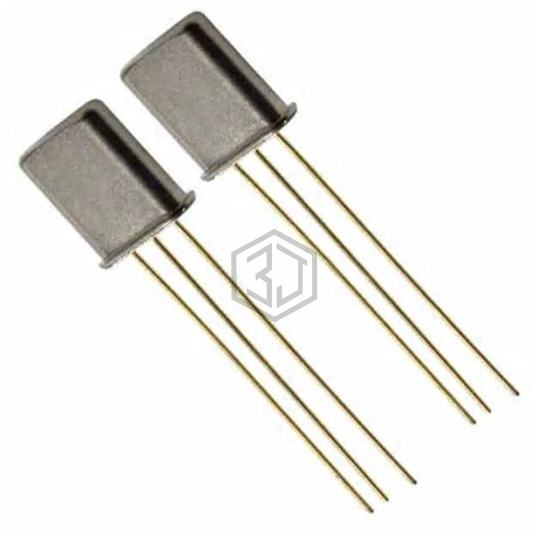

ECS-45K15B is a Monolithic Crystals manufactured by ECS Inc.. MONO XTAL 45MHZ 4P 3DB TH 2PC. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 70°C, package / case UM-1, size / dimension 0.287" L x 0.098" W (7.30mm x 2.50mm).
In Stock: 189
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency - Center | 45 MHz |
| Impedance | 650 Ohms |
| Insertion Loss | 3dB |
| Bandwidth | 30 kHz |
| Ripple | 1dB |
| Number of Poles | 4 |
| Operating Temperature | -20°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | UM-1 |
| Size / Dimension | 0.287" L x 0.098" W (7.30mm x 2.50mm) |
| Height (Max) | 0.315" (8.00mm) |
Submit your RFQ for ECS-45K15B and get a quote within 24 hours.
