STANDARD MOTOR 4500 RPM 24V

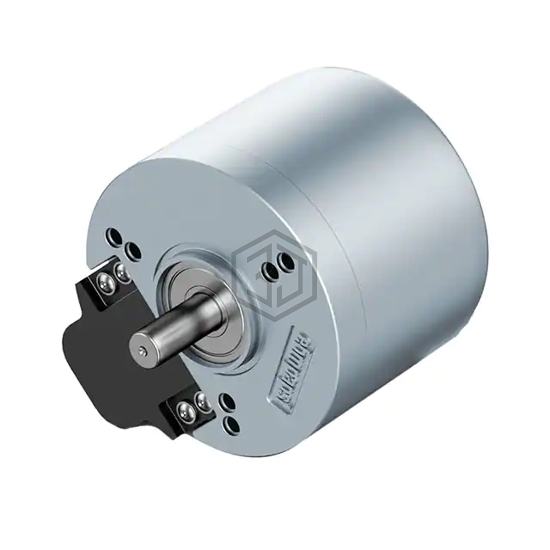

VM.VD4915BK1 is a Motors - AC, DC manufactured by ebm-papst Inc.. STANDARD MOTOR 4500 RPM 24V. Key specifications: operating temperature 0°C ~ 40°C, voltage - rated 24VDC, size / dimension Round - 1.929" Dia (49.00mm), termination style Wire Leads with Connector.
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Standard |
| Motor Type | Brushless (BLDC) |
| Voltage - Rated | 24VDC |
| RPM | 4500 RPM |
| Torque - Rated (oz-in / mNm) | 33.28 / 235 |
| Power - Rated | - |
| Encoder Type | - |
| Size / Dimension | Round - 1.929" Dia (49.00mm) |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.787" (20.00mm) |
| Mounting Hole Spacing | 1.969" (50.00mm) |
| Termination Style | Wire Leads with Connector |
| Features | - |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | - |
| Operating Temperature | 0°C ~ 40°C |
Submit your RFQ for VM.VD4915BK1 and get a quote within 24 hours.
