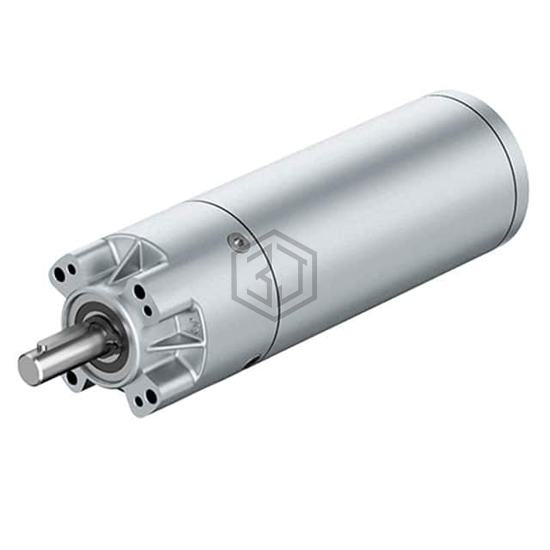

GEARMOTOR 800 RPM 24V PLANETARY
VG.ECI4240BK1.PP42.1.5 is a Motors - AC, DC manufactured by ebm-papst Inc.. GEARMOTOR 800 RPM 24V PLANETARY. Key specifications: operating temperature 0°C ~ 40°C, voltage - rated 24VDC, size / dimension Round - 1.654" Dia (42.00mm), termination style Wire Leads with Connector.
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Gearmotor |
| Motor Type | Brushless (BLDC) |
| Voltage - Rated | 24VDC |
| RPM | 800 RPM |
| Torque - Rated (oz-in / mNm) | 155.8 / 1100 |
| Power - Rated | - |
| Encoder Type | - |
| Size / Dimension | Round - 1.654" Dia (42.00mm) |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.984" (25.00mm) |
| Mounting Hole Spacing | 1.417" (36.00mm) |
| Termination Style | Wire Leads with Connector |
| Features | - |
| Gear Reduction Ratio | 5 |
| Torque - Max Momentary (oz-in / mNm) | - |
| Operating Temperature | 0°C ~ 40°C |
Submit your RFQ for VG.ECI4240BK1.PP42.1.5 and get a quote within 24 hours.
