FIXED IND 4.7UH 350MA 1.3OHM SMD

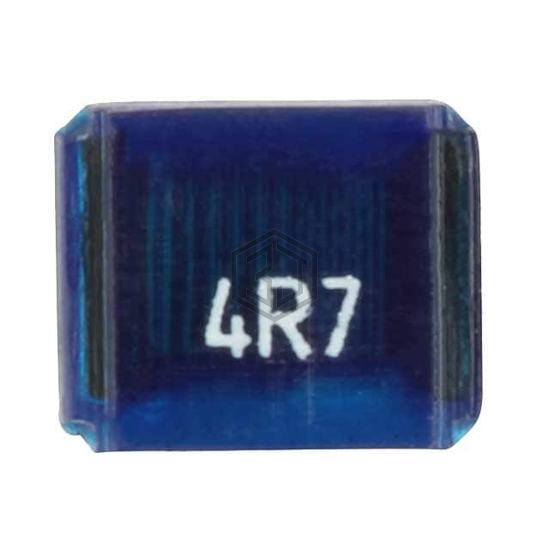

WCL3225-4R7-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 4.7UH 350MA 1.3OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 350 mA.
In Stock: 3,822
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 4.7 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 350 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.3Ohm Max |
| Q @ Freq | 12 @ 7.96MHz |
| Frequency - Self Resonant | 60MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.138" L x 0.114" W (3.50mm x 2.90mm) |
| Height - Seated (Max) | 0.089" (2.25mm) |
Submit your RFQ for WCL3225-4R7-R and get a quote within 24 hours.
