FIXED IND 2.2UH 12A 4.8 MOHM SMD

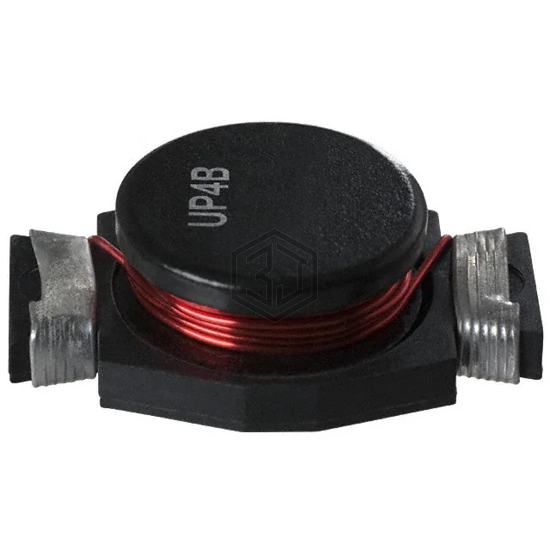

UP4B-2R2-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 2.2UH 12A 4.8 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 12 A.
In Stock: 120
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12 A |
| Current - Saturation (Isat) | 23.7A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.870" L x 0.591" W (22.10mm x 15.00mm) |
| Height - Seated (Max) | 0.310" (7.87mm) |
Submit your RFQ for UP4B-2R2-R and get a quote within 24 hours.
